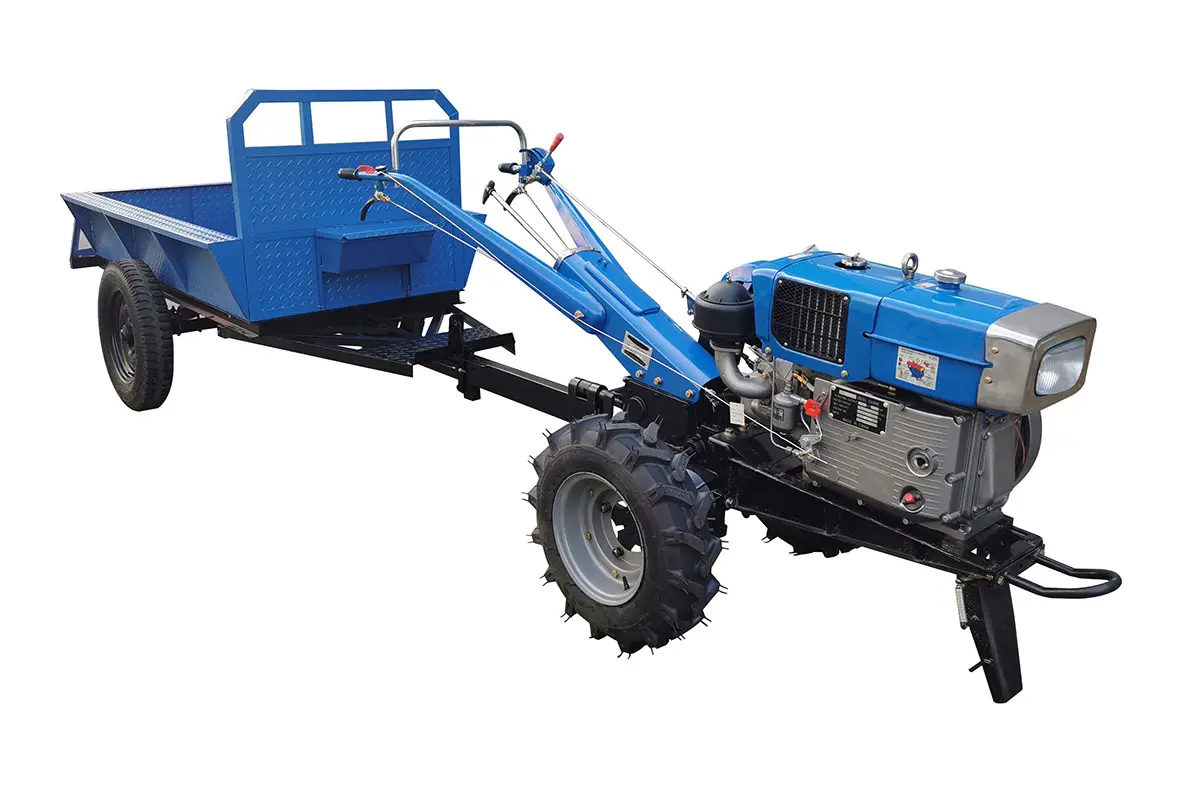

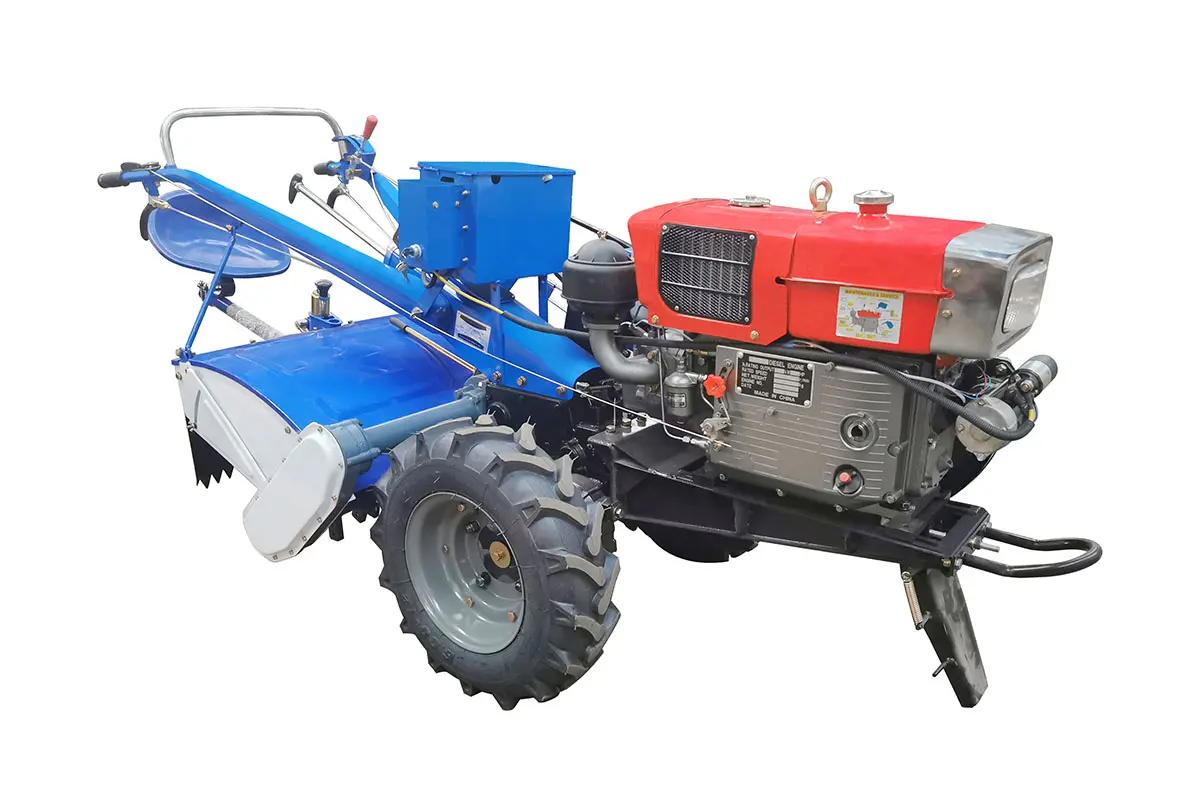

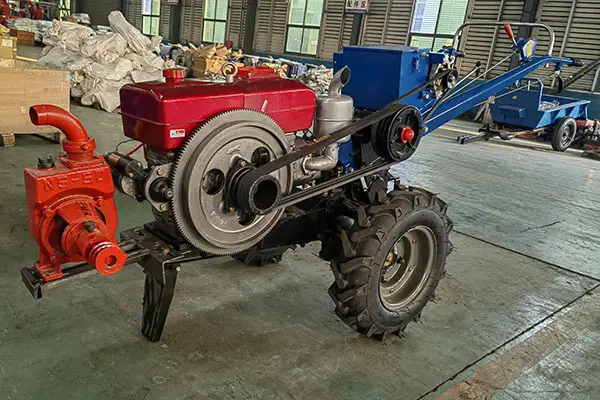

OEM ODM 12/15/18/20/22 HP Diesel Engine Model 151 Walking Tractor - Hand Crank/Electric Start | Hardcore Power for All Farming Tasks, Fuel-Efficient & Reliable
description1
Products pecifications
| Model | walking tractor | ||||||||
| Chassis parameters | Engine model | 151 | |||||||
| Engine and power/horse power | 8.88kw-16.17kw / 12-22HP | ||||||||
| Type | Traction&Driving | ||||||||
| Rated Traction | 2400N | ||||||||
| Transmission mode of the clutch box | Chain drive | ||||||||
| Type of clutch | double friction disc of constant conjunction | ||||||||
| Type OfBrake | Cricoids, Inside, Expansion | ||||||||
| Type of steering Gear | Meshing sleeve | ||||||||
| Dimensions（LxWxH） | 2680×960×1250mm | ||||||||
| Min.Ground Distance | 185mm | ||||||||
| Wheel base | 580-800mm | ||||||||
| Weight | 185kg | ||||||||
| Tire Model | 6.00-12 | ||||||||
| Number of gears | Ⅰ | Ⅱ | Ⅲ | Ⅳ | Ⅴ | Ⅵ | RⅠ | RⅡ | |
| 1.4 | 2.5 | 4.1 | 5.3 | 9.4 | 15.3 | 1 | 3.8 | ||
| Tire Pressure | Field Work | 80~200(0.8~2.0kgf/cm2) | |||||||
| Transportation Work | 140~200(1.4~2.0kgf/cm2 ) | ||||||||
| Triangle belt | B1880 / 4pcs | ||||||||
Core configuration
● Dynamical system
Engine: Single cylinder water-cooled diesel engine, direct injection combustion technology, strong power, low fuel consumption (≤ 245g/kW · h).
Start mode: Hand cranked+electric start dual mode, can quickly ignite even in cold weather, suitable for different working environments.
Cooling method: forced water circulation cooling, long-term operation without high temperature, extending engine life.
with a high ground clearance of 210mm and reinforced steel wheels, it can easily handle complex terrains such as mud and slopes, and can be used in both water and dry fields.
● Drive system
Transmission: 8-speed (6 forward gears+2 reverse gears), suitable for different agricultural needs.
Clutch: Double disc dry friction clutch, with high transmission efficiency, smoother shifting, and strong durability.

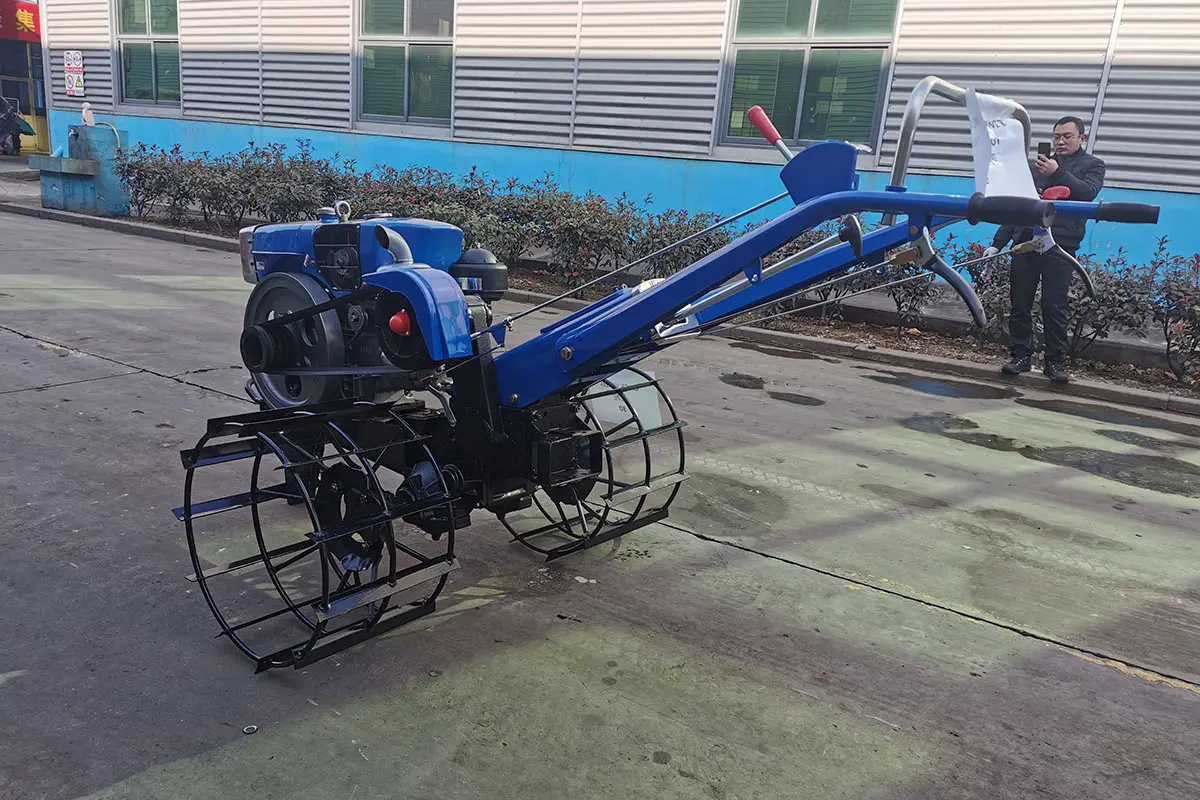

Drive wheel: Optional rubber tires (paddy/dry land tires) or reinforced steel wheels, with strong grip and good anti sinking performance.
● Chassis structure
Ground clearance: 185mm, good passability, suitable for various terrains such as paddy fields, mountains, and muddy areas.
Frame: High strength steel welded, rust resistant, deformation resistant, with a load-bearing capacity of up to 1.5 tons.
Applicable scenarios

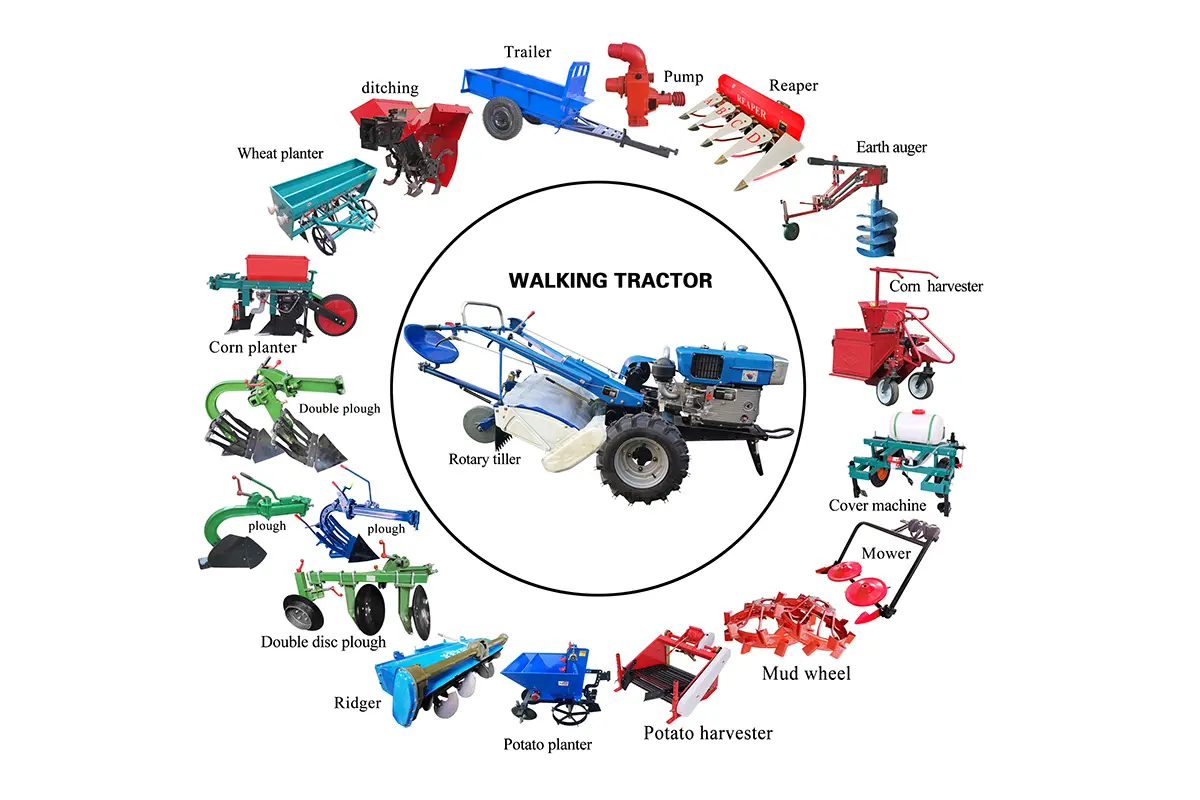

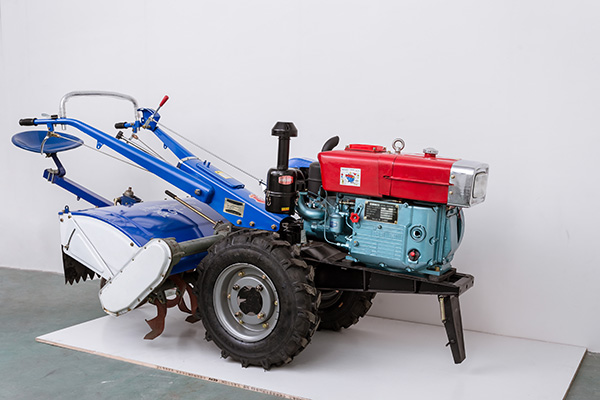

● Farmland operations: plowing, rotary tillage, sowing, harvesting, transportation, etc.
● Mountain/Hill: Strengthen chassis+anti-skid tires, strong climbing ability (slope ≤ 25 °).
● Paddy field operation: high ground clearance+paddy wheel, anti sinking and anti slip, easy operation on wet and rotten ground.
