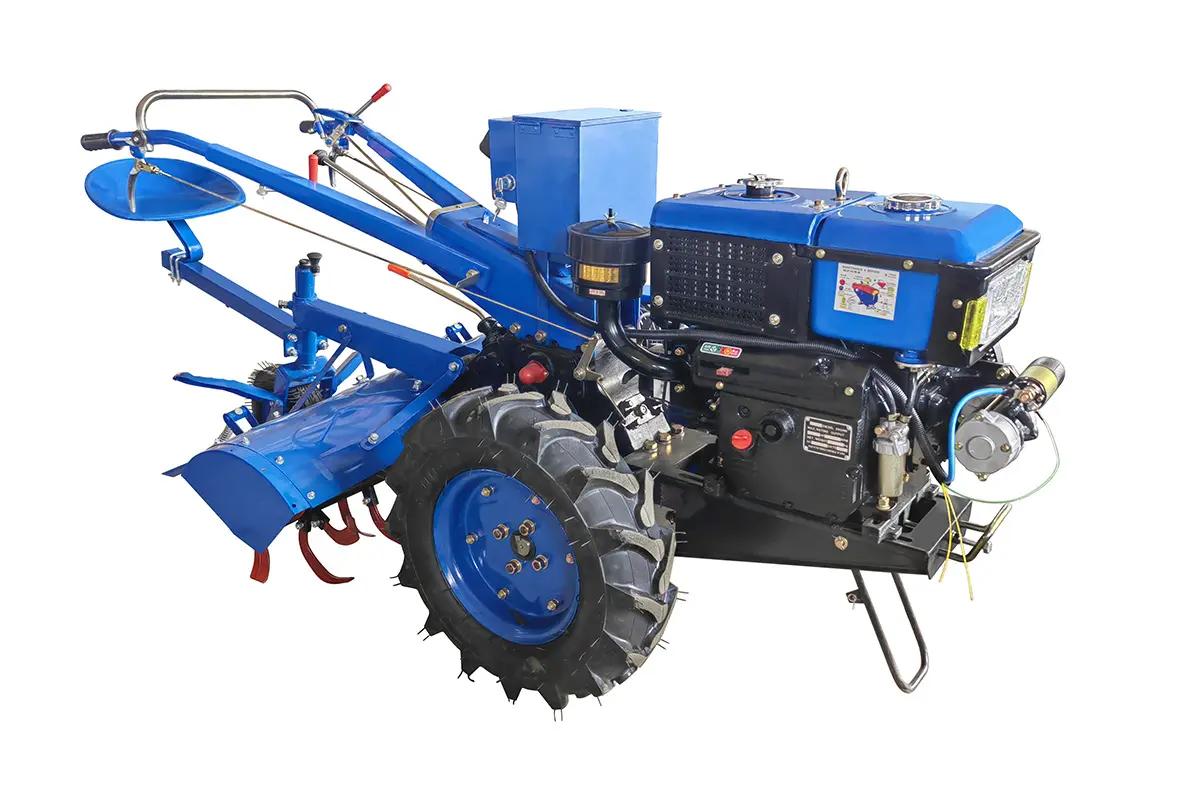

OEM ODM 12 Horsepower Air-Cooled Electric Start 101 Type Hand-Held Tractor, Versatile And Compatible With Multiple Agricultural Tools

Small in size, compact in structure, well matched in power, easy to operate, small turning radius, convenient to use and maintain, stable in performance, suitable for various terrains.

product details

description1

Products pecifications

Model	Walking tractor
Chassis parameters	Engine model				101
	Engine and power/horse power				5.88kw-8.8kw / 8-12HP
	Type				Traction&Driving
	Rated Traction				1700N
	The handlebars style				Square handle, round handle, or exquisite product
	Rack style				Five holes/perforation
	Type of clutch				Sing / double friction disc of constant conjunction Two slot / Three slot double disc / Three slot single disc
	Type OfBrake				Cricoids, Inside, Expansion
	Type of steering Gear				Meshing sleeve
	Dimensions (LxWxH)				2170×890×1150mm
	Min.Ground Distance				210mm
	Wheel base				640-680mm
	Weight				133kg
	Semi-axis				360mm/420mm
	Tire Model				6.00-12
	Number of gears	Ⅰ	Ⅱ	Ⅲ	Ⅳ	Ⅴ	Ⅵ	RⅠ	RⅡ
		1.98	3.08	4.98	8.04	12.49	24.5	2.28	7.5
	Tire Pressure	Field Work			80~200(0.8~2.0kgf/cm2)
		Transportation Work			140~200(1.4~2.0kgf/cm2 )
	Triangle belt				B1800 / 2pcs

product description

dynamical system
Engine model: Single cylinder diesel engine
Rated power: 12 horsepower (approximately 8.8kW)
Starting method: manual/electric start
Cooling method: water-cooled/air-cooled (depending on the specific model)

drive system
Transmission: 6 forward gears+2 reverse gears (the number of gears may vary depending on the model)
Drive mode: rear wheel drive (rubber tires, optional iron wheels)

working performance
Traction force: approximately 3-5 kN
Homework speed: 1.5-15 km/h (adjustable)
Minimum turning radius: ≤ 1.5 meters

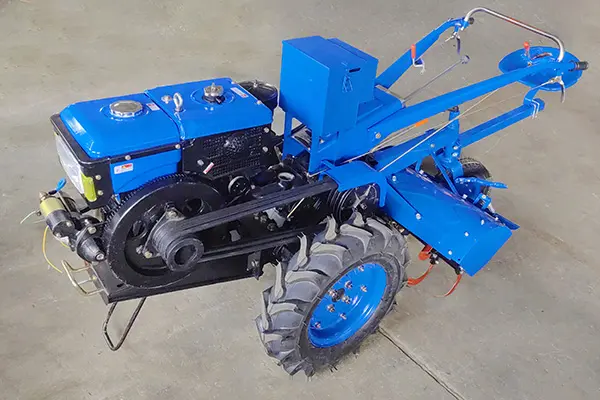

Power and Performance

Efficient water-cooled diesel engine

Equipped with a horizontal single cylinder four stroke water-cooled engine, it has stable heat dissipation performance and is suitable for long-term operation.

Hand cranked start design

Adopting the traditional manual starting method, the structure is simple and reliable, without relying on batteries, especially suitable for unstable rural power environments.

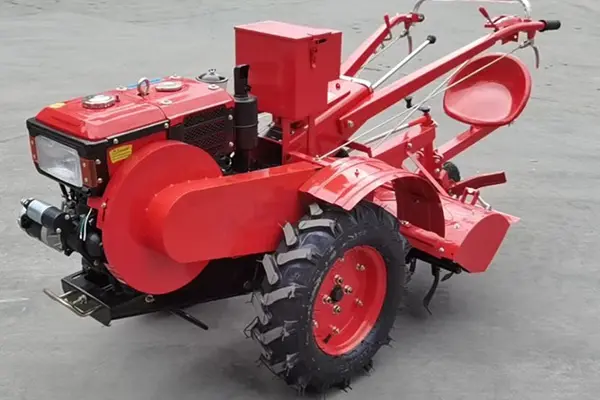

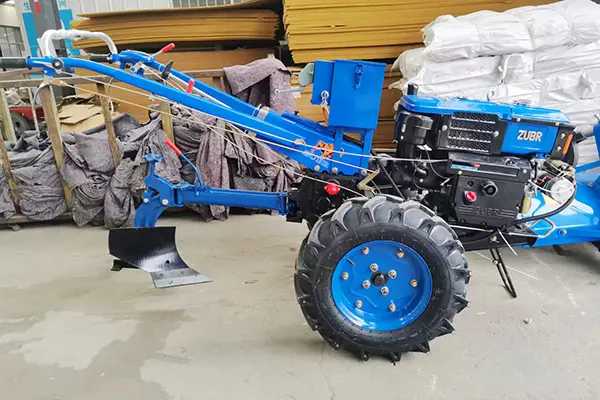

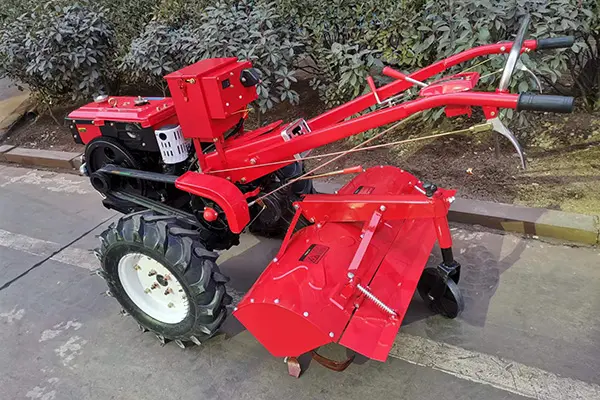

Structure and adaptability

Compact and flexible

The overall dimensions are approximately 2170 × 890 × 1150mm, with a minimum ground clearance of 210mm and adjustable wheelbase (640-680mm), suitable for complex terrains such as hills and mountains.

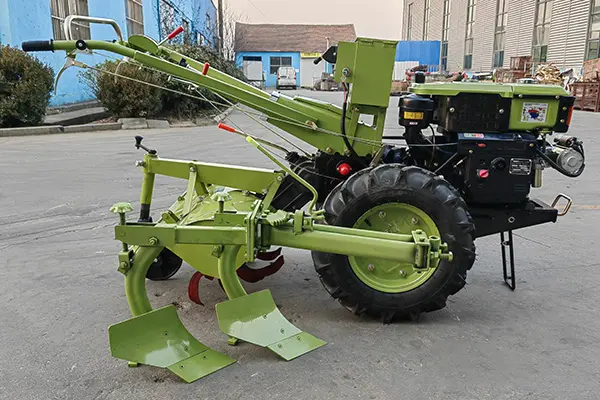

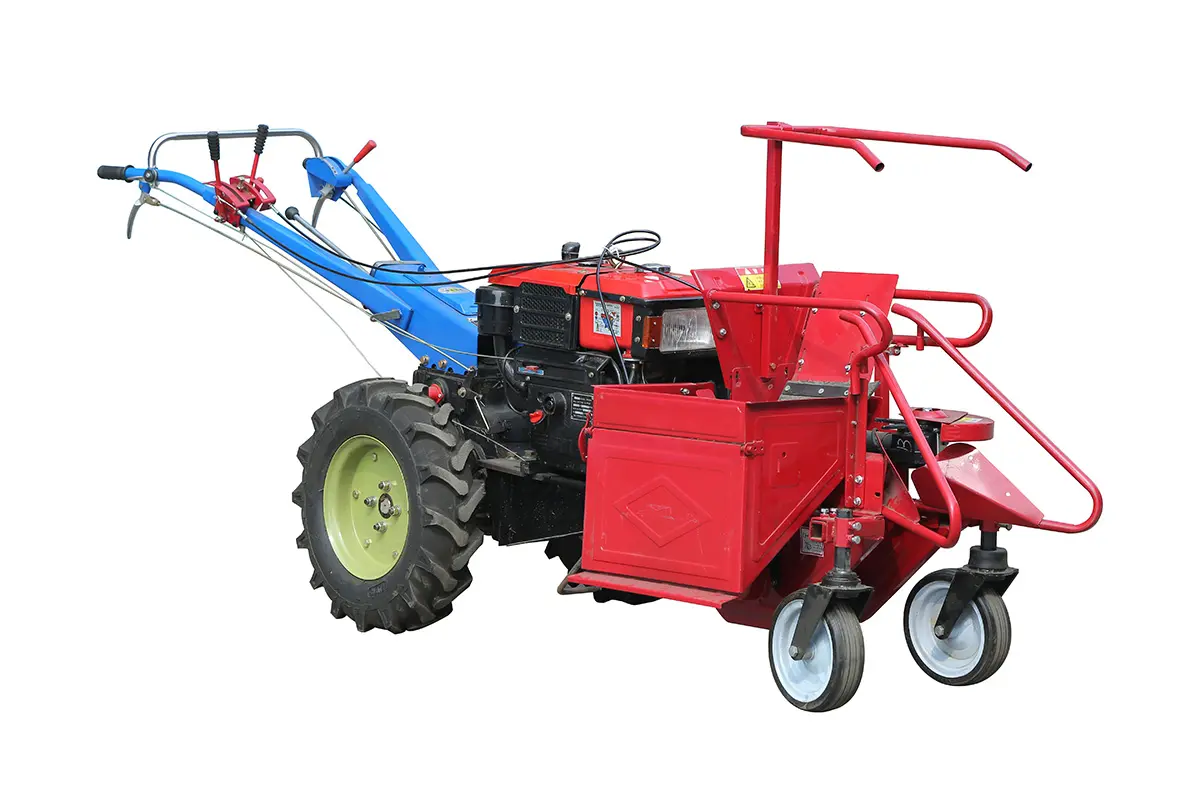

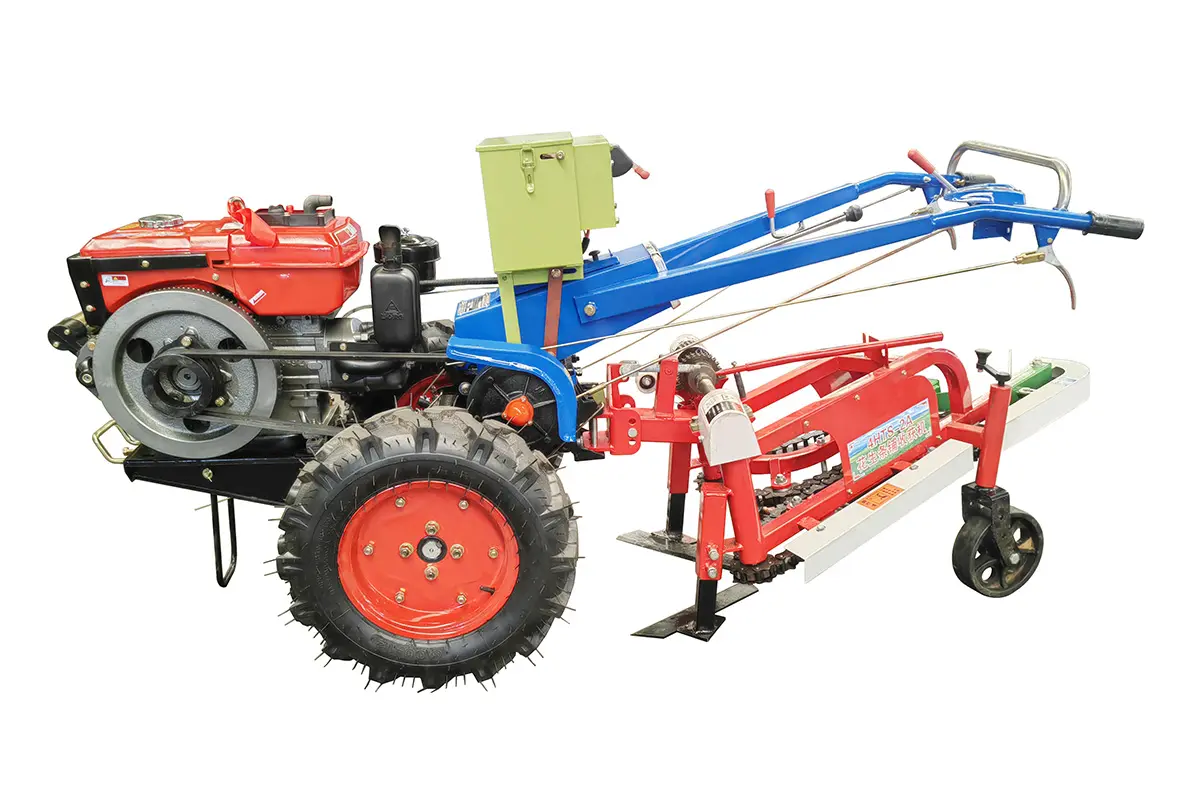

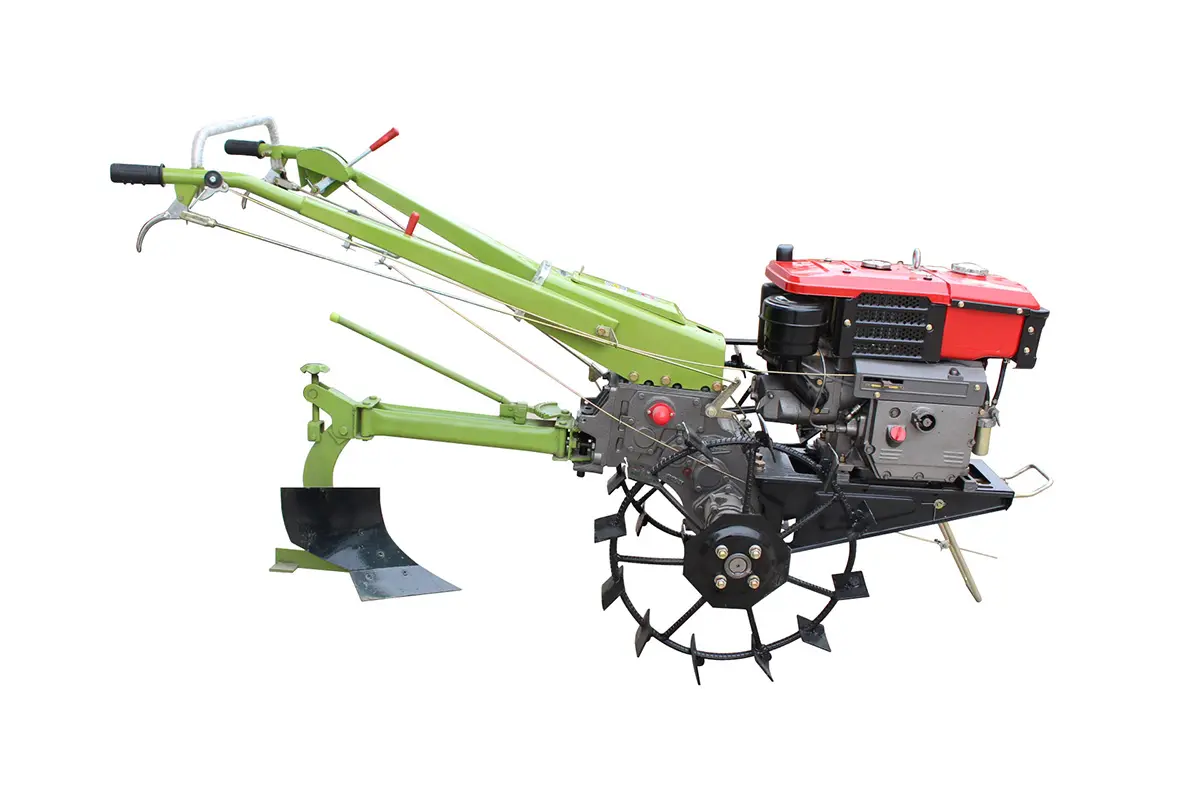

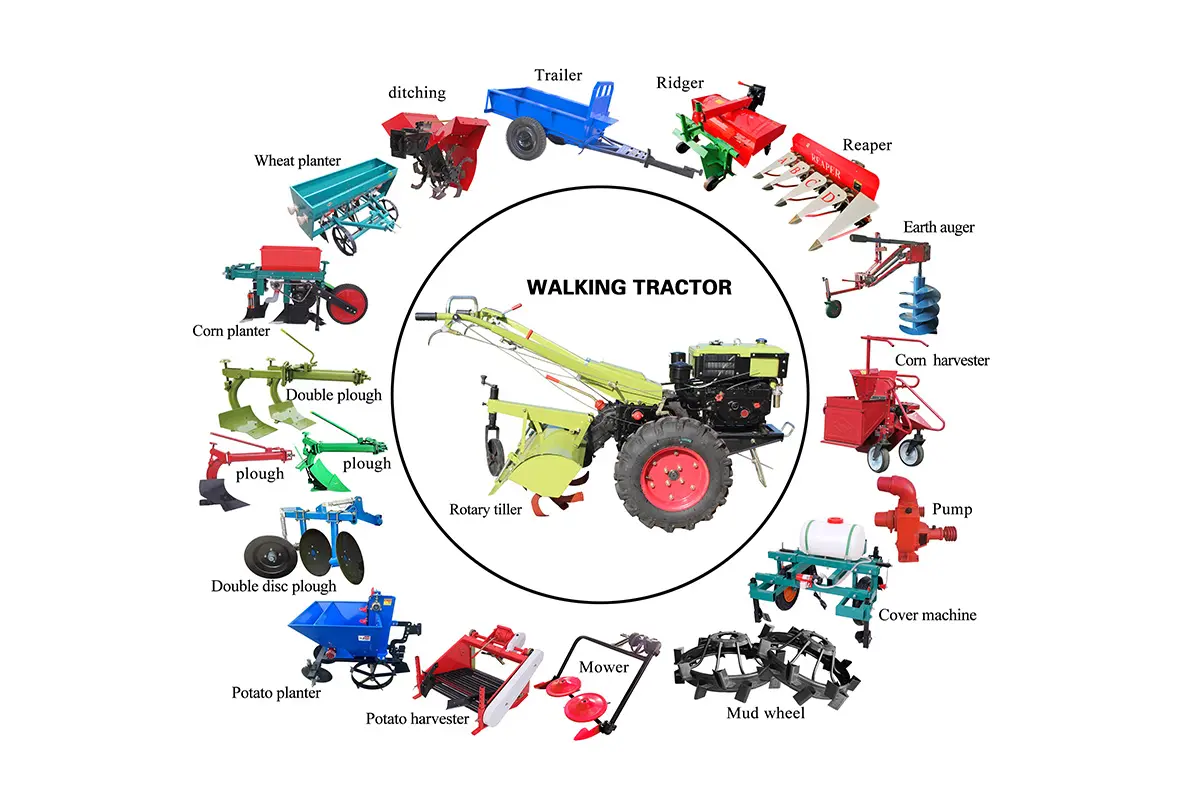

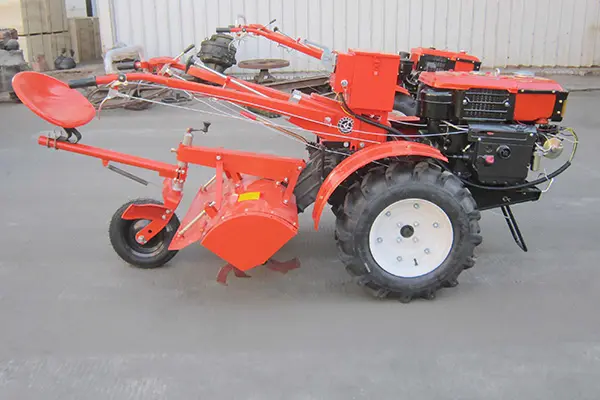

Multi functional expansion

It can be equipped with agricultural tools such as rotary tillers and seeders to achieve integrated operations such as plowing, ridging, and fertilization.
