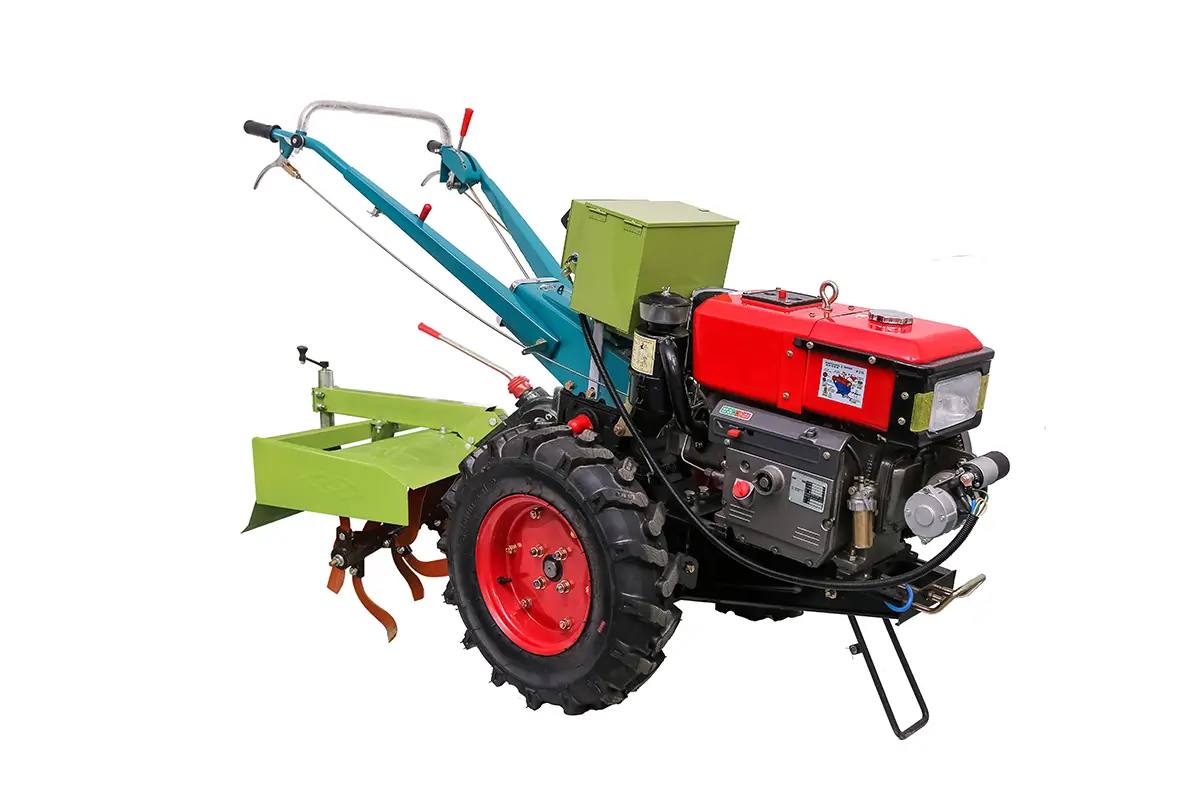

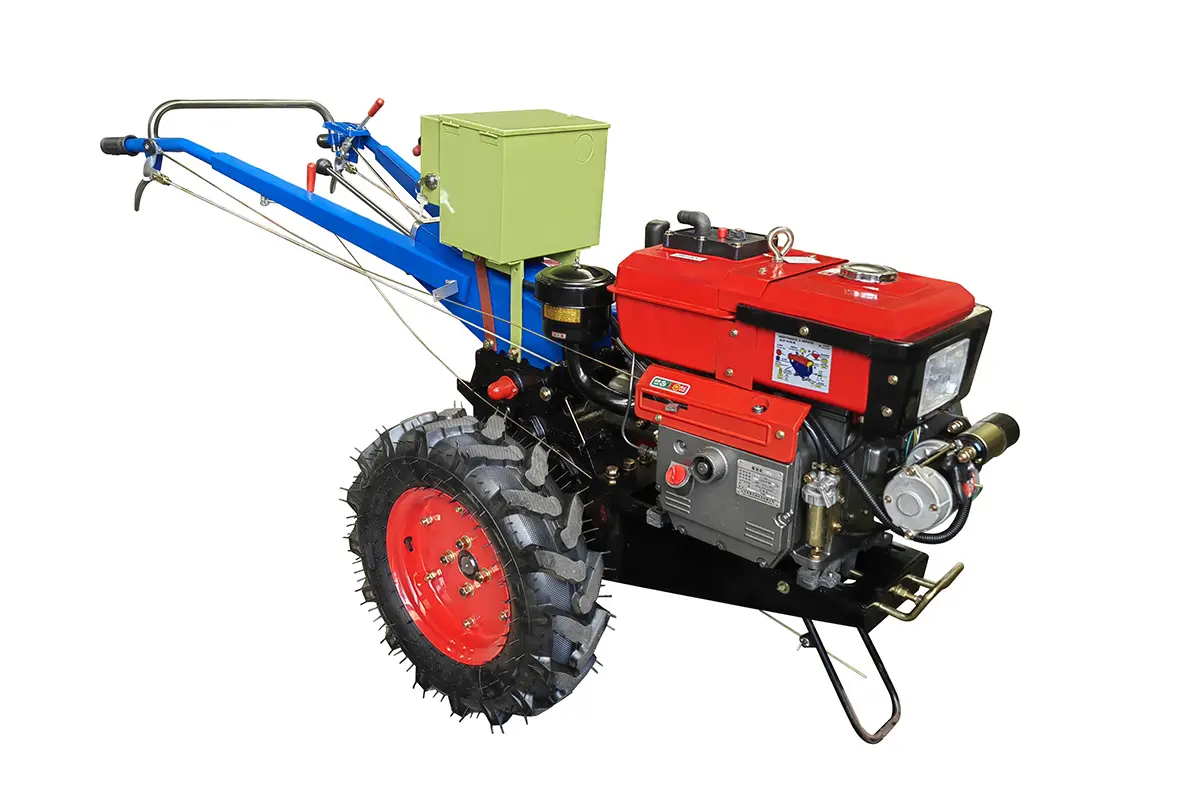

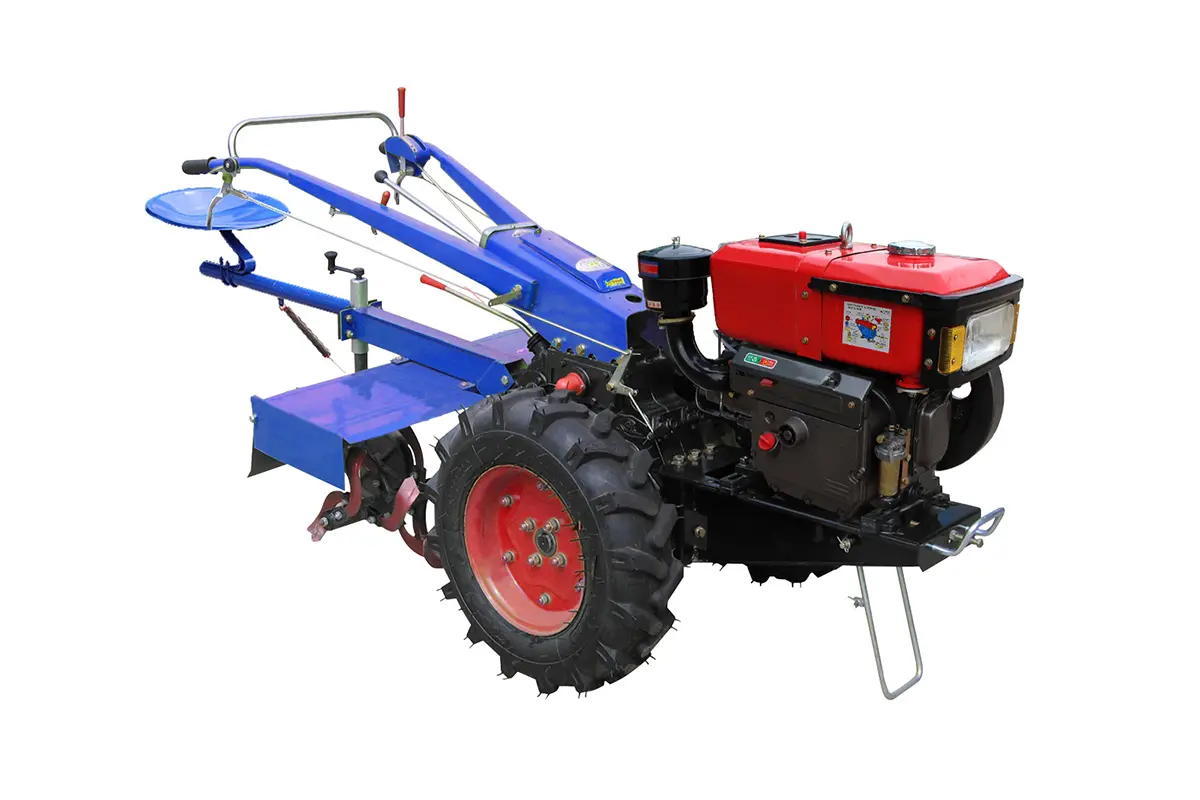

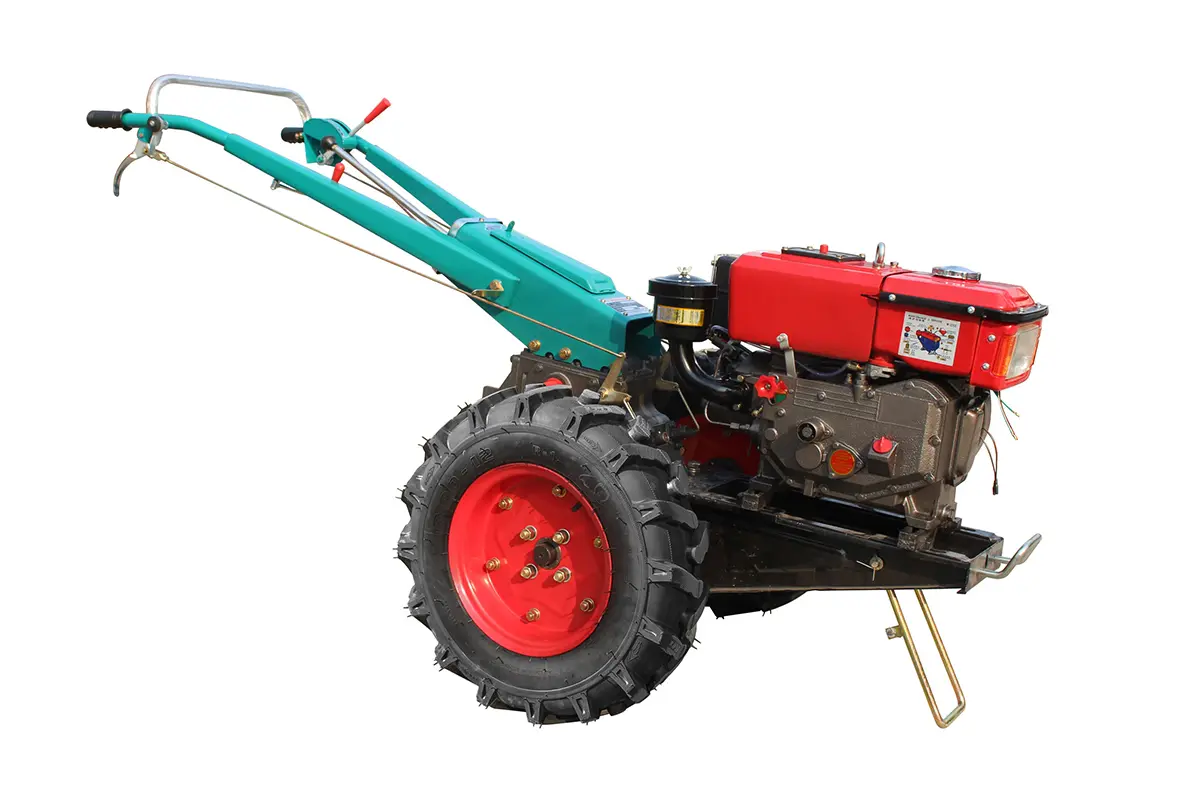

OEM ODM 8/10/11/12 horsepower water-cooled 101 hand-guided tractor with hand-cranked/electric start for multiple uses

Equipped with a water-cooled diesel engine, it features high heat dissipation efficiency, stable operation during long-term use, and can easily handle heavy-duty farming (such as dry land tillage, paddy field rotary tillage, and slope land reclamation, etc.). Compared with air-cooled models, it is more heat-resistant and has a longer service life.

product details

description1

Products pecifications

Model	Walking tractor
Chassis parameters	Engine model				101
	Engine and power/horse power				5.88kw-8.8kw / 8-12HP
	Type				Traction&Driving
	Rated Traction				1700N
	The handlebars style				Square handle, round handle, or exquisite product
	Rack style				Five holes/perforation
	Type of clutch				Sing / double friction disc of constant conjunction Two slot / Three slot double disc / Three slot single disc
	Type OfBrake				Cricoids, Inside, Expansion
	Type of steering Gear				Meshing sleeve
	Dimensions (LxWxH)				2170×890×1150mm
	Min.Ground Distance				210mm
	Wheel base				640-680mm
	Weight				133kg
	Semi-axis				360mm/420mm
	Tire Model				6.00-12
	Number of gears	Ⅰ	Ⅱ	Ⅲ	Ⅳ	Ⅴ	Ⅵ	RⅠ	RⅡ
		1.98	3.08	4.98	8.04	12.49	24.5	2.28	7.5
	Tire Pressure	Field Work			80~200(0.8~2.0kgf/cm2)
		Transportation Work			140~200(1.4~2.0kgf/cm2 )
	Triangle belt				B1800 / 2pcs

Performance advantages - Strong power, high efficiency and durability

Water-cooled engine technology: 12-horsepower high-pressure common rail water-cooled diesel engine, with enhanced heat dissipation efficiency, avoids the high-frequency reduction problem caused by high temperatures in air-cooled models, and is suitable for long-term heavy-load operations (such as deep ploughing, hard soil crushing, etc.).

Low speed, high torque: By optimizing the gear transmission ratio, it can output the maximum torque, which is more fuel-efficient than models of the same level and has a stronger climbing ability.

Multi-speed transmission: 6 forward gears +2 reverse gears, with a speed range covering 1.98-24.5km/h, precisely matching different operation requirements such as rotary tillage and transportation.

Economy - Low cost and high return

Fuel consumption optimization: The water-cooling system ensures more complete combustion, with the average fuel cost per mu being 0.8 to 1.2 yuan lower than that of air-cooled models, making it extremely fuel-efficient.

Convenient maintenance:

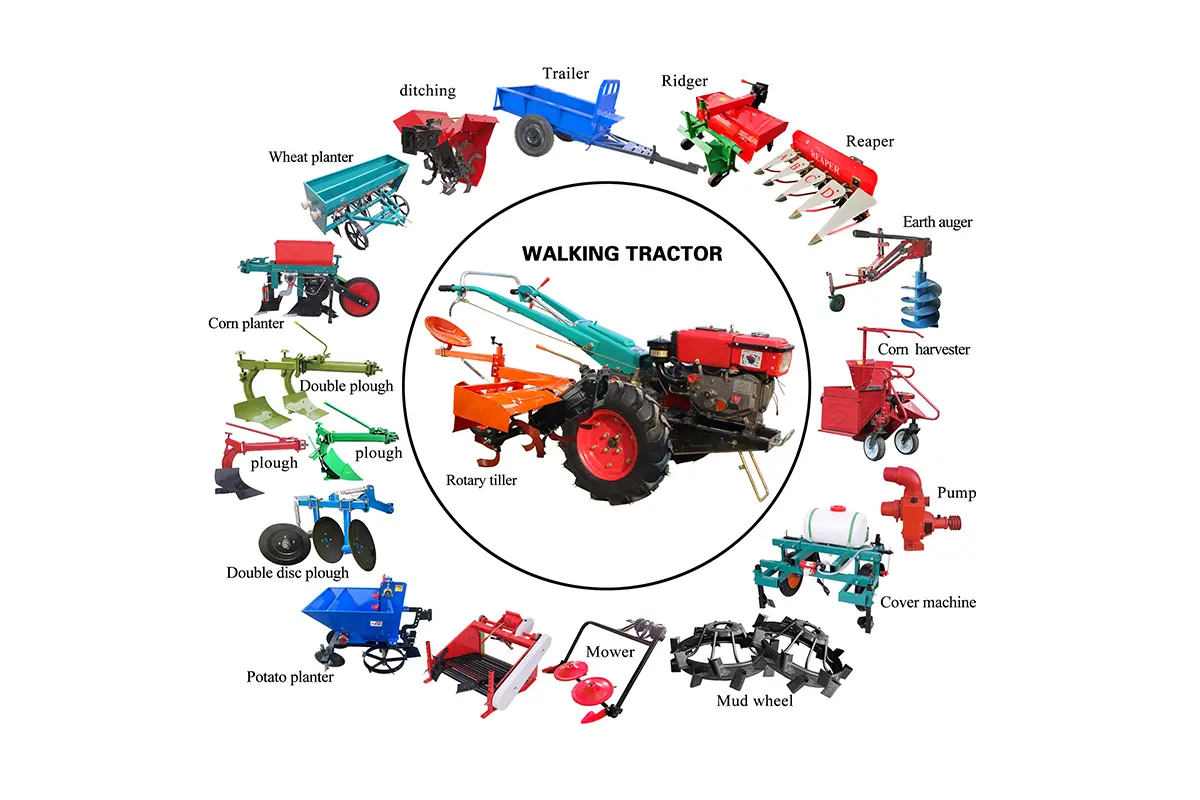

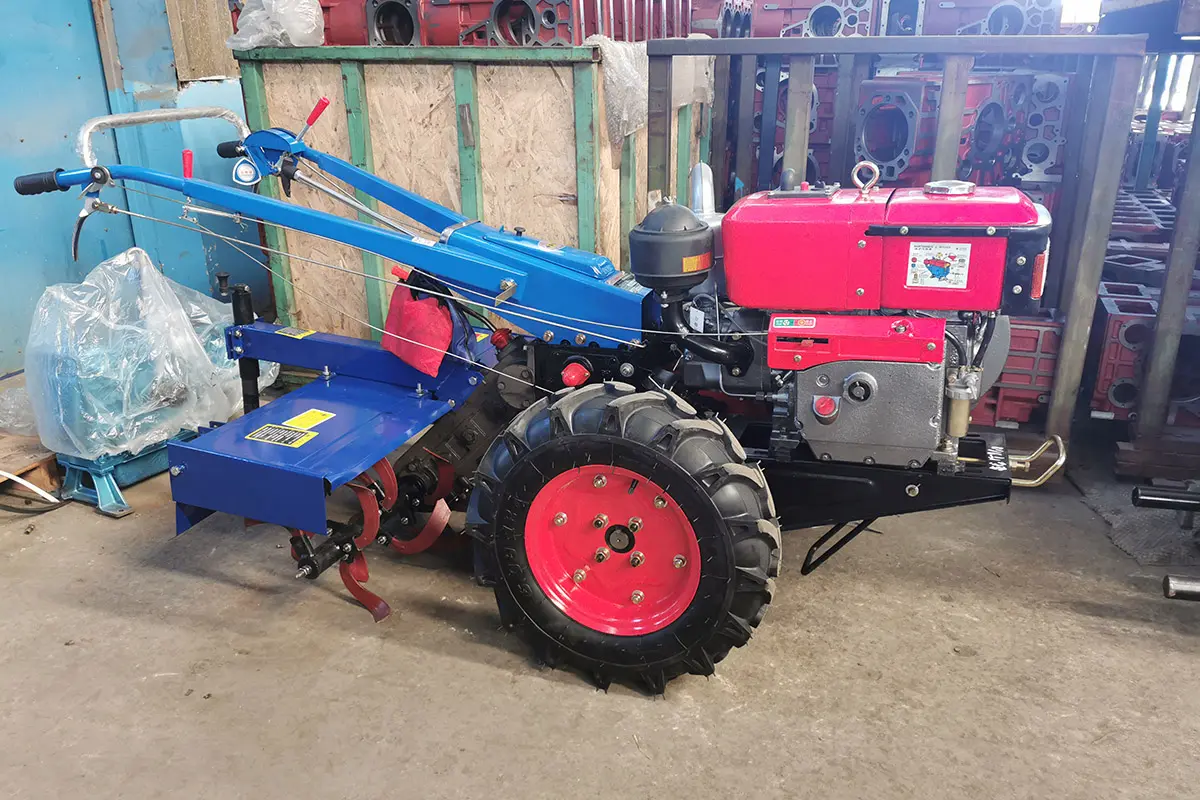

Multi-functional in one machine: By replacing modules (such as rotary tillers, plows, buckets, etc.), it can replace micro-tillers, water pumps, transport vehicles and other equipment, reducing the overall purchase cost by 40%.

Structural design - Sturdy and reliable, with user-friendly operation

Strengthen the fuselage

High-carbon steel welded chassis, with key parts thickened to 6mm, and the anti-deformation capacity increased by 50%.

Sealed bearing housing, dust-proof and water-proof, suitable for harsh environments such as paddy fields and sandy areas.

Human-computer interaction optimization

Elastic shock-absorbing seats reduce fatigue from long-term work; Front lighting lamp, supporting night operations.

Application Scenarios - All-terrain adaptation

Paddy field operation: Install and widen the iron wheels for paddy fields, with an anti-sinking depth of 30cm, to solve the problem of slipping of traditional rubber wheels.

For hilly and mountainous areas: The center of gravity is shifted backward, and the safe slope for operation can reach 25°.

Greenhouse orchard: Narrow body (minimum width 65cm), flexible turning;

Multi-functional expansion: It can be optionally equipped with straw returning machines, potato harvesters, etc., to ensure no idle use throughout the year.
