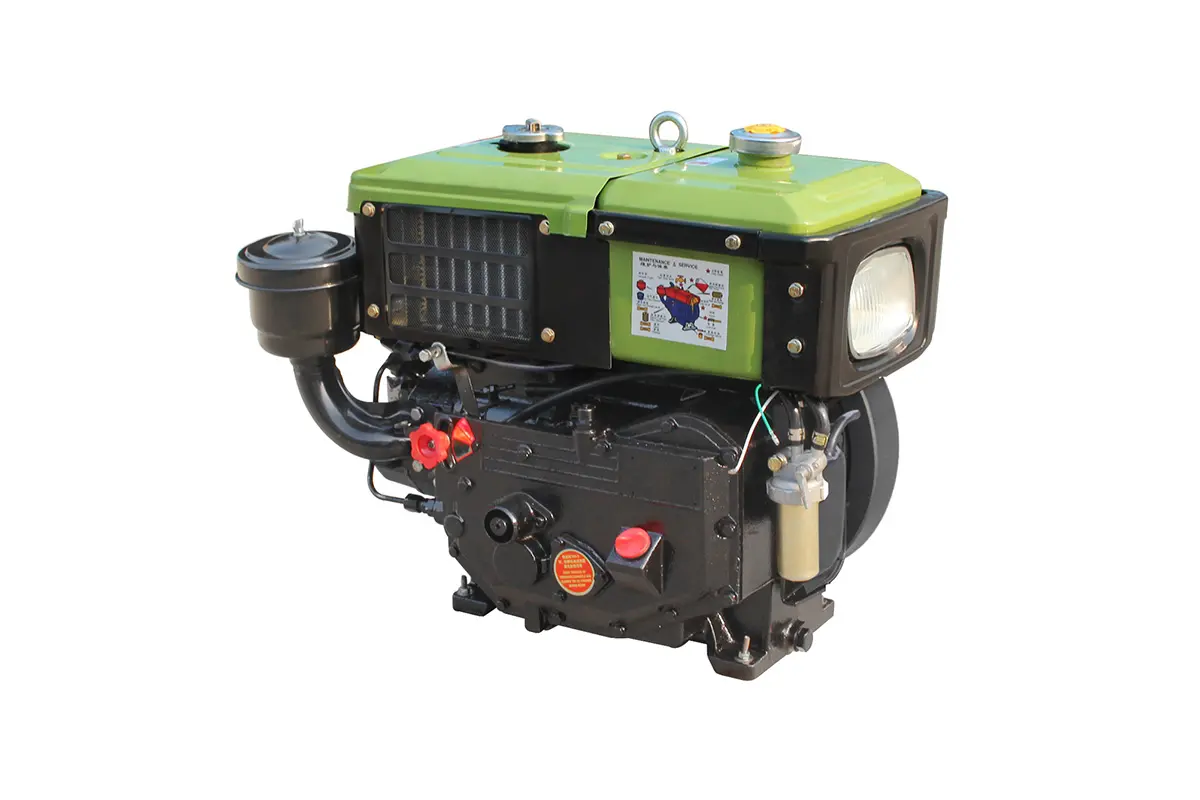

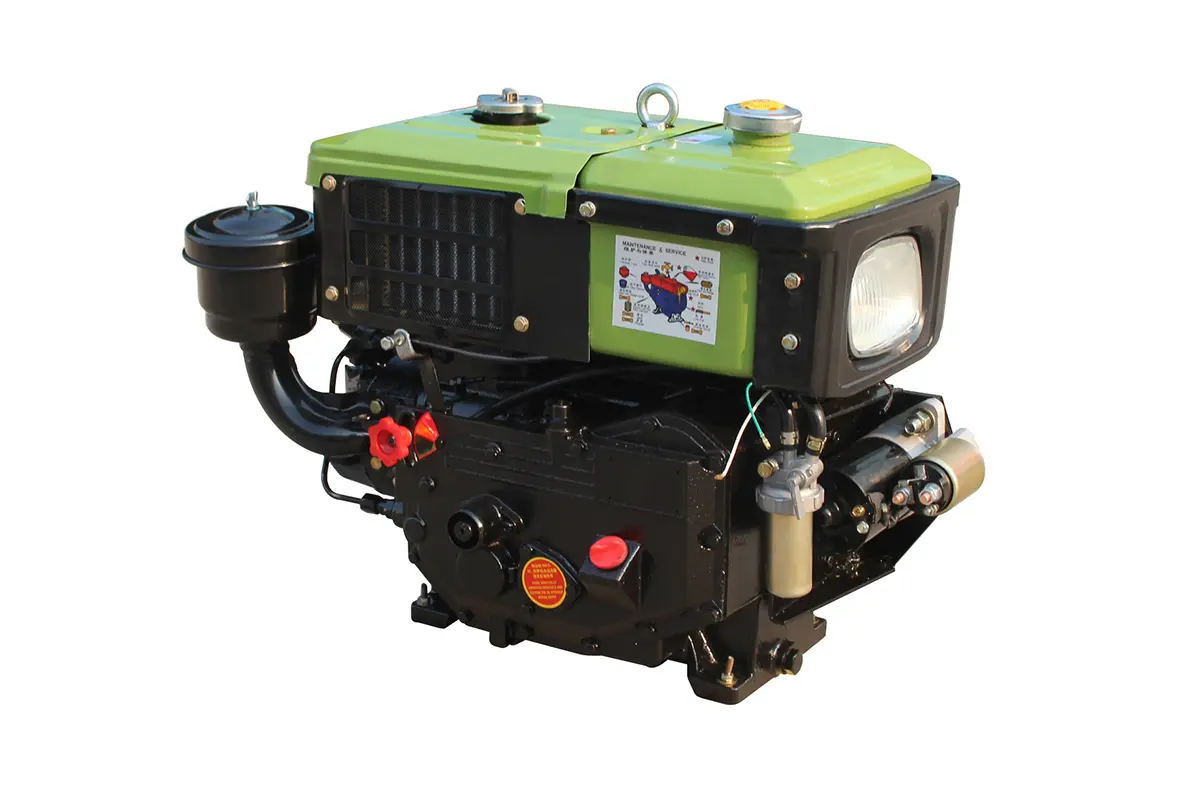

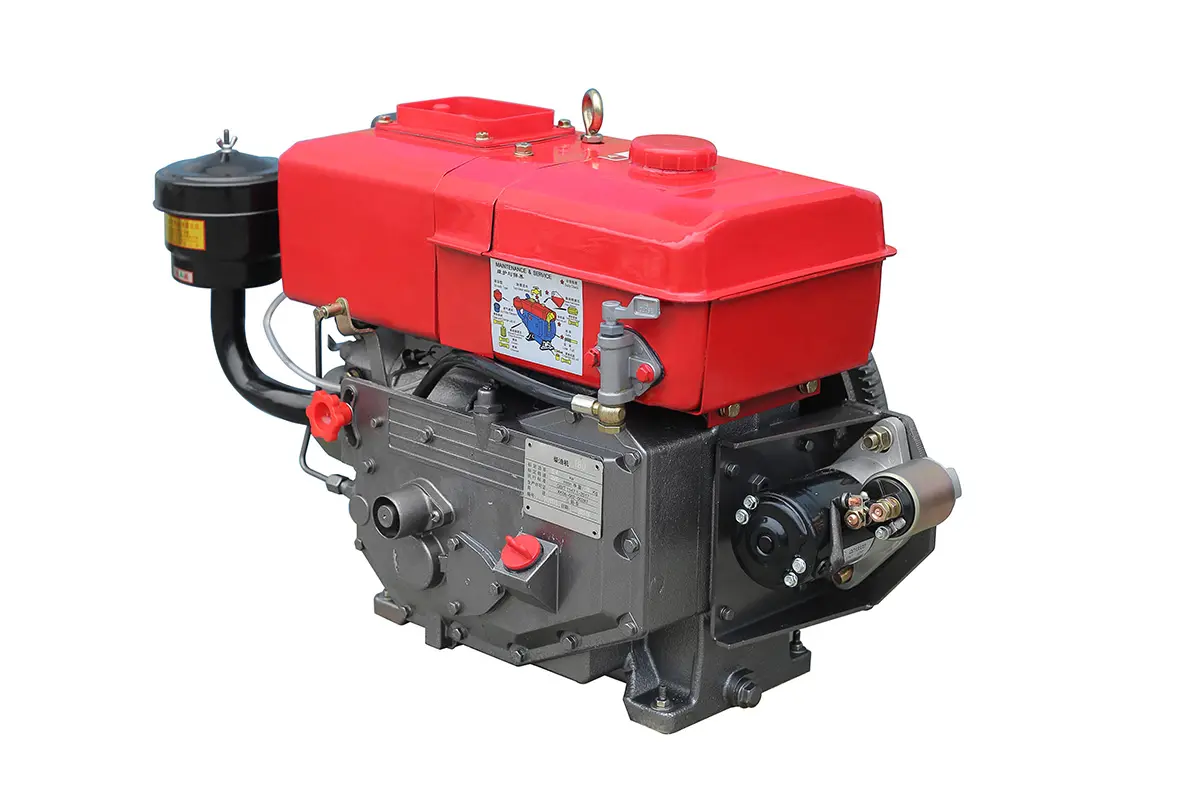

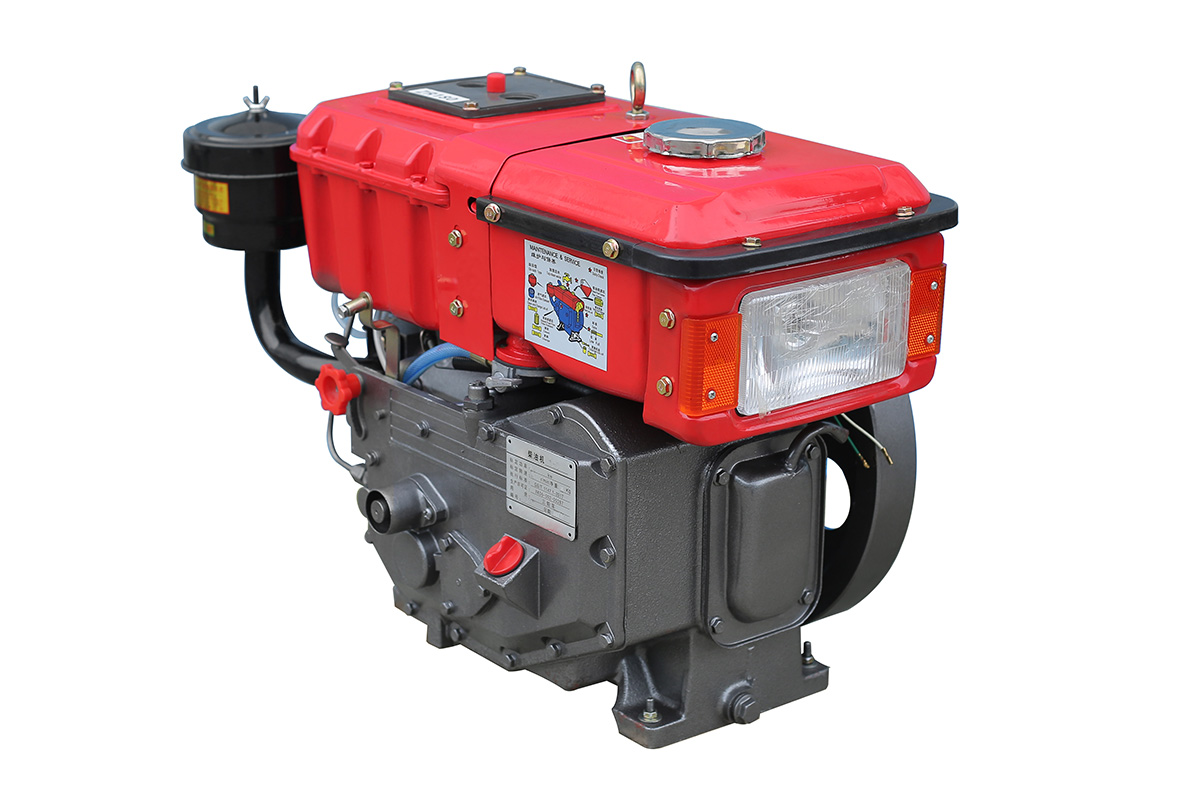

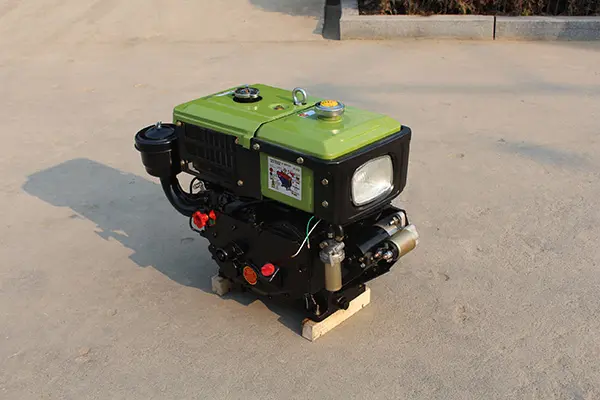

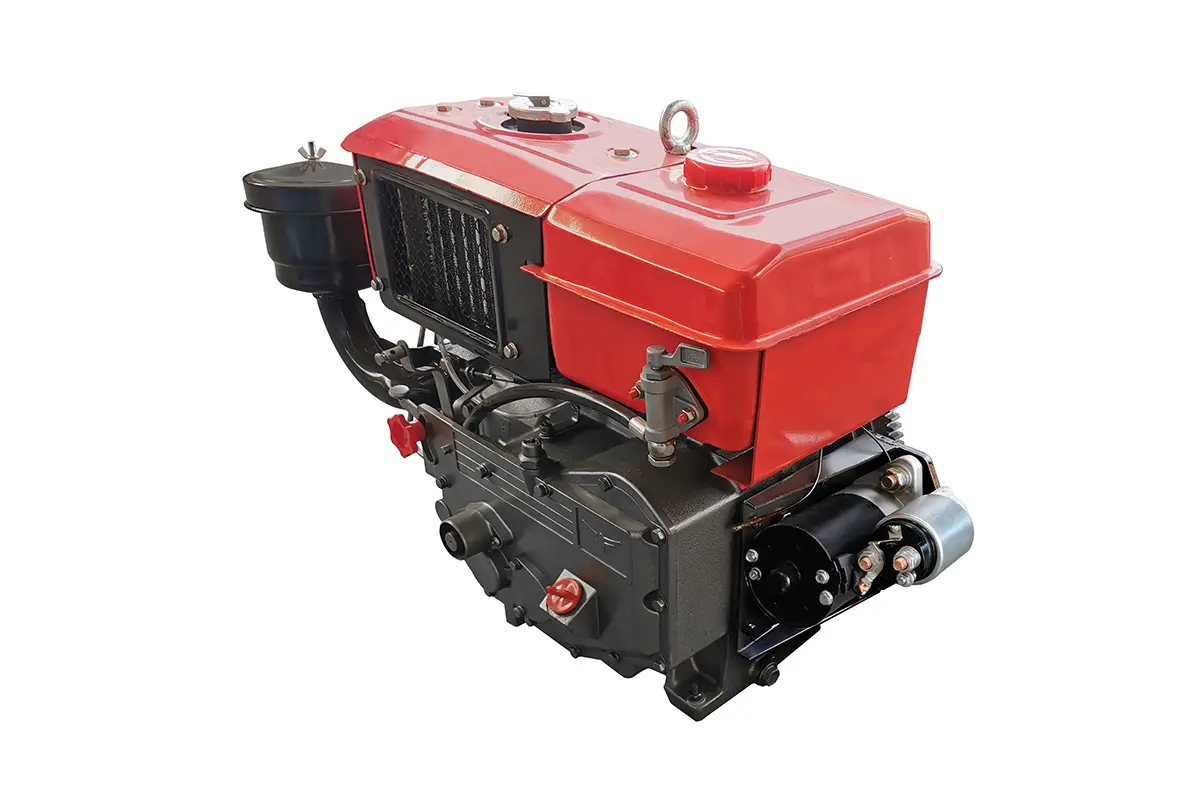

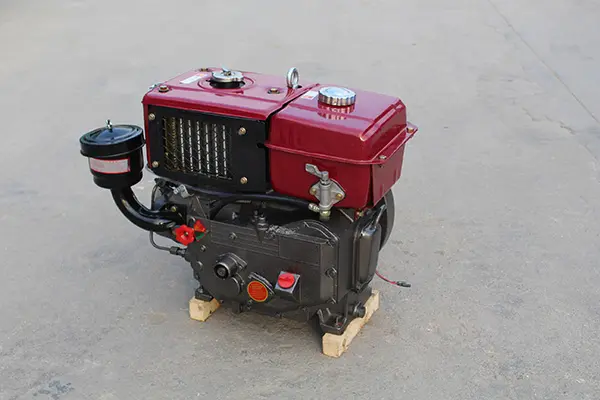

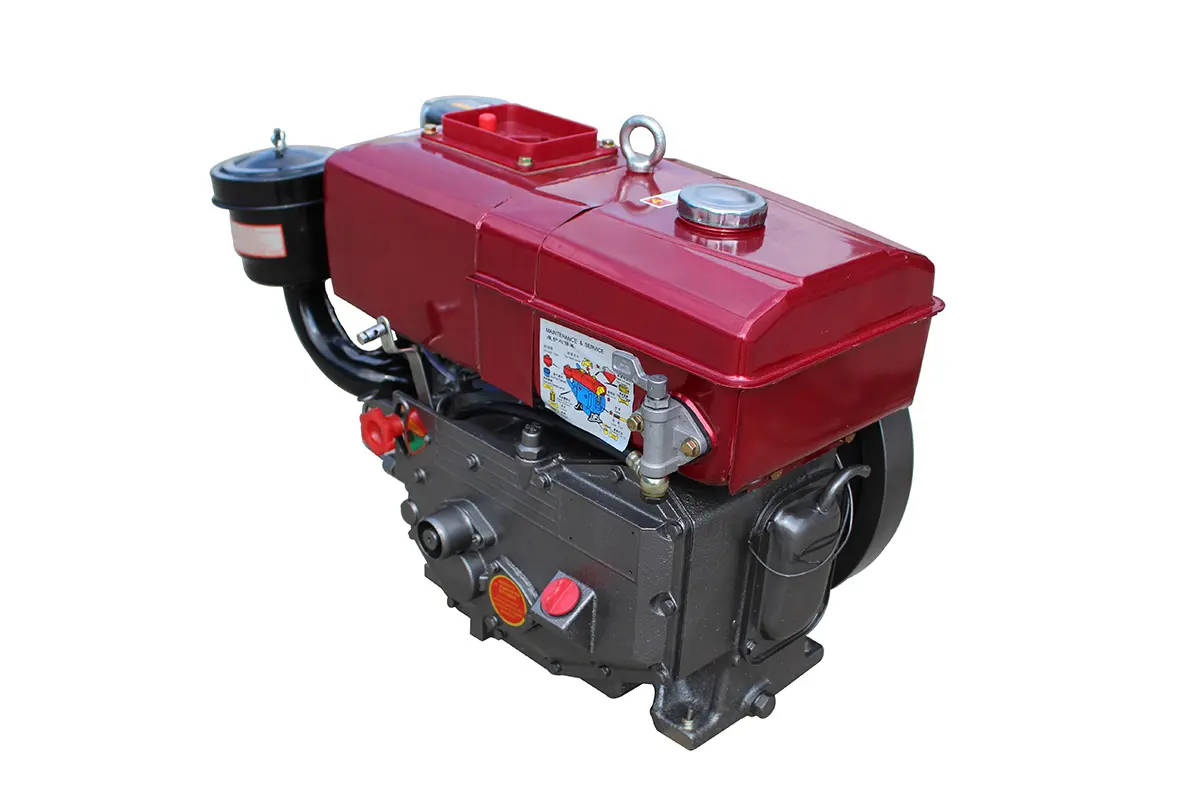

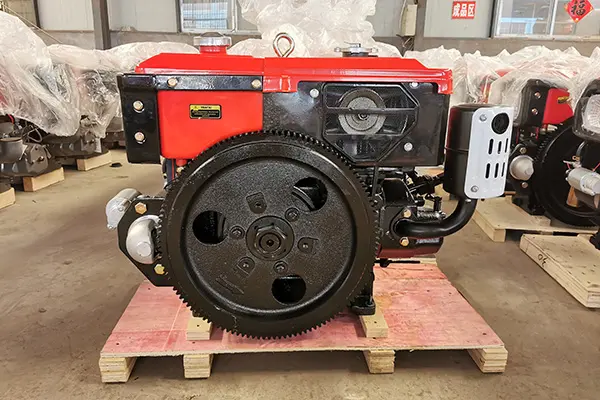

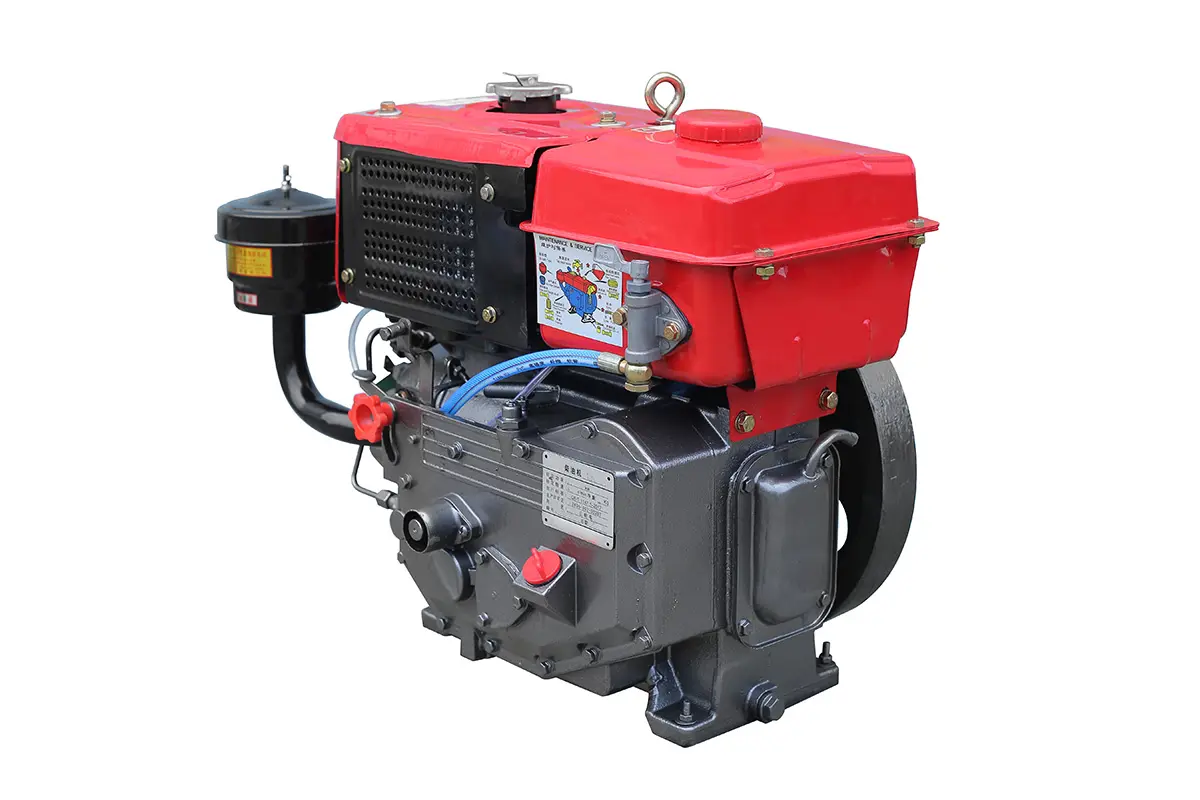

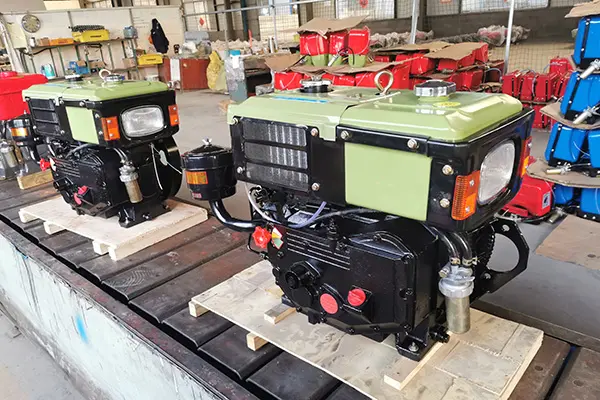

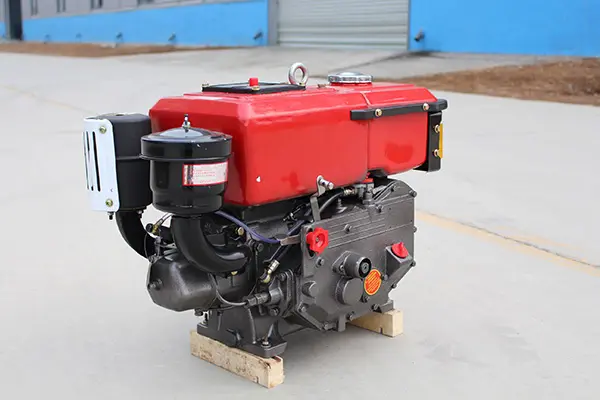

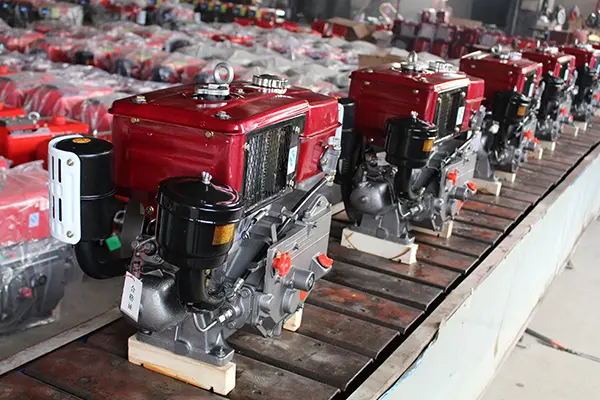

OEM R180 8HP Diesel Engine – Evaporative/ Condensing Type – Manual/ Electric Start

The 180 diesel engine is sensitive,sm- ooth running, excellent acceleration performance and small overall noise which is ideal for customers.

As a power device used for mini-tractor,transportation vehicle in agriculturalsmall generating sets,air-compressor,inland ships,engineering machinery and processing machinces for agricutural products and sideline products(ed.thresher, rice mill flourmiling machinefodder grinder).

product details

description1

Products pecifications

Model		ZR180
Engine model		180-1	180D-1	180-5	180D-5	180NL-1	180NLD-1	180NL-5	180NLD-5
Type		Single, horizontal, water cooled,four stroke
Combustion System		direct injection/Swirl chamber
BorexStroke(mm)		80X80	80X80	80X80	80X80	80X80	80X80	80X80	80X80
Total Displacement(L)		0.402	0.402	0.402	0.402	0.402	0.402	0.402	0.402
Power	1 hour	5.4kw	5.4kw	5.4kw	5.4kw	5.4kw	5.4kw	5.4kw	5.4kw
Power	12 hour	5.15kw	5.15kw	5.15kw	5.15kw	5.15kw	5.15kw	5.15kw	5.15kw
Rated Speed(r/min)		2600	2600	2600	2600	2600	2600	2600	2600
Specific Fuel(g/kwh)		≤278.8	≤278.8	≤278.8	≤278.8	≤278.8	≤278.8	≤278.8	≤278.8
Tank Capacity(L)		8	8	8	8	1.25	1.25	1.25	1.25
Fuel Tank Capacity(L))		6	6	6	6	6	6	6	6
Cooling way		Evaporative				Condensing
Lubrication Method		Pressure splash spray
Starting Method		Hand start	electric start	Hand start	electric start	Hand start	electric start	Hand start	electric start
Light		/	/	√	√	/	/	√	√
Weight（kg）		72	77	72	77	72	77	72	77

R180 8HP diesel engine product description

Model	R180
Type	Single cylinder, four stroke, air cooled/water cooled diesel engine
Power rating	8 horsepower (HP)
Displacement	Approximate 0.4-0.5L (consult customer service for details)
Speed	2200-2600 rpm (rated/max)
Fuel system	Direct injection
Starting mode	Hand start/ electric start (optional)
Lubricating system	Pressure splash composite
Net weight	Approximately 80-100 kg (depending on configuration)

main features

High efficiency and energy saving: direct injection/turbulent combustion technology is adopted, fuel consumption rate is low, economy is excellent.

Durable: cast iron cylinder body design, wear resistance, suitable for long time high load operation.

Low maintenance: simplified mechanical structure, convenient daily maintenance, long oil change cycle.

Wide adaptability: suitable for small agricultural machinery (such as micro tiller, water pump), harvester, tractor, irrigation pump, generator set, small generator, air compressor, auxiliary machinery of ships, fishing boat power, engineering auxiliary power.
